ULTRA BEE HYPER KITS

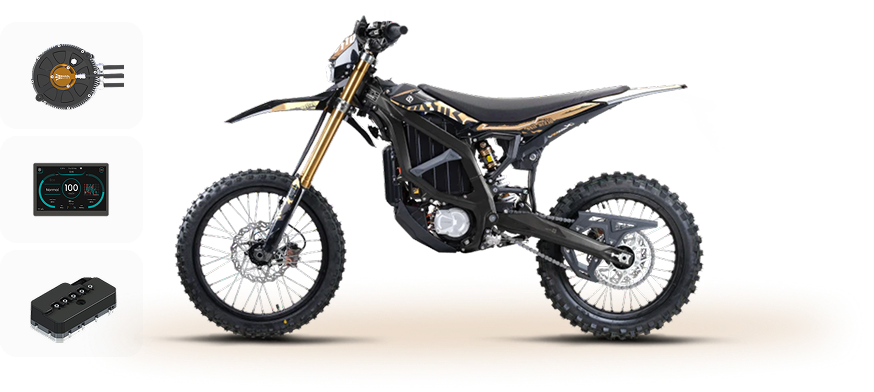

- Compatible with Sur-Ron Ultra Bee
HYPER ULTRA-BEE KIT
Complete EV Powertrain Kit
Motor · Controller · Display — Engineered as One System
PRE-LAUNCH OFFER — Flat $200 OFF
Hyper Combo In Just $1499 — $1699
- Select Your Controller
Motor
SuB 80 MX Series
Encoder-based, high-efficiency mid-drive
Controller
Hyper Ferox
High-current FOC controller
Display
3SHUL SMART DISPLAY
1000 nits, CAN Based Display
- Supported Operating Range
36V – 92V Optimized
- 1000Amps Phase Current
- 700Amps Battery Current
- Pre-matched hardware and validated power limits for reliability.
- Intelligent Control
Hyper Ferox
System Voltage
36V to 92V
Motor Current
1000A
Battery Current
700A
Efficiency
up to 99.1%
Core Capabilities
- Aggressive torque tuning
- Smart thermal control
- Compact high-power design
- FOC Sine-Wave
Engineering Note:
Provides aggressive current delivery for snap-throttle response, ideal for tight technical trails and track use.
Motor
SuB 80 MX Series
Encoder-based, high-efficiency mid-drive
Controller
Hyper Leo
High-current FOC controller
Display
3SHUL SMART DISPLAY
1000 nits, CAN Based Display
- Supported Operating Range
36V – 126V Optimized
- 1000Amps Phase Current
- 700Amps Battery Current
- Pre-matched hardware and validated power limits for reliability.
- Intelligent Control
Hyper Leo
System Voltage
36V to 126V
Motor Current
1000A
Battery Current
700A
Efficiency
up to 99.7%
Core Capabilities
- Aggressive torque tuning
- Smart thermal control
- Compact high-power design
- FOC Sine-Wave
Engineering Note:
Provides aggressive current delivery for snap-throttle response, ideal for tight technical trails and track use.
- Primary Drive
SuB 80 MX - ultra BEE MOTOR
Peak Power
72v - 52kw
82v - 61kw
96v - 72kw
108v - 81kw
Peak Torque
122 Nm @1100A(RMS)
Voltage Range
72V – 108V
Max Phase Current
1500A Peak
Cooling
Natural Air
Protection
IP68
MAX RPM
14000
Engineering Note:
Designed with increased thermal mass and thicker phase wires to handle continuous high-current discharge without overheating.
- System Interface
3SHUL SMART DISPLAY
Acts as the system interface — translating motor and controller data into clear, real-time rider information.
Real-time Telemetry
Monitor voltage sag, amp draw, and thermal status instantly.
Brightness
1000 nits
Compatibility
CAN
Input
5V DC
Environment
IP67 Outdoor
Engineered as One System
Every component is validated to work in perfect synchronization.
Matched Logic
Motor parameters are pre-loaded into the controller, ensuring FOC algorithms are tuned for the specific inductance and resistance of the MX series motors.
Validated Hardware
Thermal limits and current safeguards are calibrated to prevent component damage while extracting maximum safe performance.
Plug & Play
Includes custom harness adaptors for Light Bee, minimizing installation time and eliminating wiring errors.
